FRP Vessels
Xi'an Ink-blue Environmental Protection Technology Co., Ltd. is a comprehensive supplier of water treatment equipment integrating design, production, sales, and installation. The business scope covers various industries such as drinking water production and treatment, sewage treatment, seawater desalination, medical, pharmaceutical, food, beverage, chemical, agricultural irrigation, etc. Ink-blue Environmental Protection Technology has won an excellent reputation in the water treatment industry with high-quality products and perfect pre-sales and after-sales services.
What is FRP Vessel exactly?
FRP vessels, often referred to as “FRP tank” or “FRP filter vessel”, are an important component in the pretreatment system of a water treatment system.
It is a non-metallic composite material storage tank, made of resin and glass fiber through an automated PLC-controlled fiber winding process.
It can be filled with filter media such as quartz sand, manganese sand, activated carbon, and ion exchange resin to remove sediments, suspended solids, calcium and magnesium ions, and odors from raw water. Compared to traditional steel filter tanks, FRP tanks offer several advantages, including high strength, lightweight construction, good corrosion resistance, and the ability to withstand large temperature differences.
Currently, they have largely replaced traditional steel filter tanks and are widely used in many fields such as the chemical industry, water and wastewater treatment, food and beverage, mining and metals, power, energy, and high-purity applications.
Structure, material and accessory list of FRP Tank
Basic Structure
A basic FRP pressure tank consists of three parts: the tank itself, the opening, and the base. The size of the opening and the base are the same as the size of the upper and lower openings of the tank.
Opening
- PPO material, thread connection (2.5" and 4")
- Aviation aluminum, flange connection (6")
Base

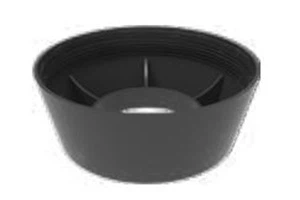

- Standard base: reinforced plastic (tank size: 6"–16");
- Round base: reinforced plastic (tank size: 18"–21");
- Tripod base: FRP (tank size: 24"–80")
Material Selection
Liner
The inner lining of large-diameter containers is made of glass fiber-reinforced polymer (GFRP), while the inner lining of small-diameter containers is made of a thermoplastic material, manufactured through a blow molding process. It has excellent chemical resistance and is manufactured using an integrated rotational molding and blow molding process. The finished product features seamless connections, high-pressure resistance, and leak-proof properties.
FRP tank body
The tank housing is constructed using continuous filament winding of fiberglass-reinforced material and then sealed with epoxy resin. This process makes the container corrosion-resistant and completely leak-proof. We utilize computer-aided winding machines and other customized equipment to manufacture products that are high-performing and durable.
Opening & Port
|
Picture |
|
|
|
|
Size |
2.5’’ |
4’’ |
6’’ |
|
Material |
PPO |
Aviation aluminum |
|
|
Structure |
Thread |
Flange |
|
|
Features |
Reinforced PPO modified plastic materials conform to the general international thread standard and have the characteristics of high strength, good pressure resistance, low heat deformation, wear resistance, and stain resistance. |
Aviation aluminum materials can be applied to various complex media conditions. They exhibit more stable pressure resistance and a longer service life. |
|
Base
|
Picture |
|
|
|
|
Base |
Standard base |
Round base |
Tripod base |
|
Material |
Reinforced plastics |
Reinforced plastics |
Reinforced plastics |
|
Applicable range |
6’’-16’’ |
18’’-21’’ |
24’’-80’’ |
Accessories and Installation Location
FRP pressure tanks generally cannot be used alone. In the entire water treatment system, they need to be combined with core components such as water distributors, automatic valves, and central pipes to form the entire filtration system.
The price of a complete set is usually lower than the price of buying all the accessories individually. Therefore, we generally recommend that customers choose to buy the complete set.

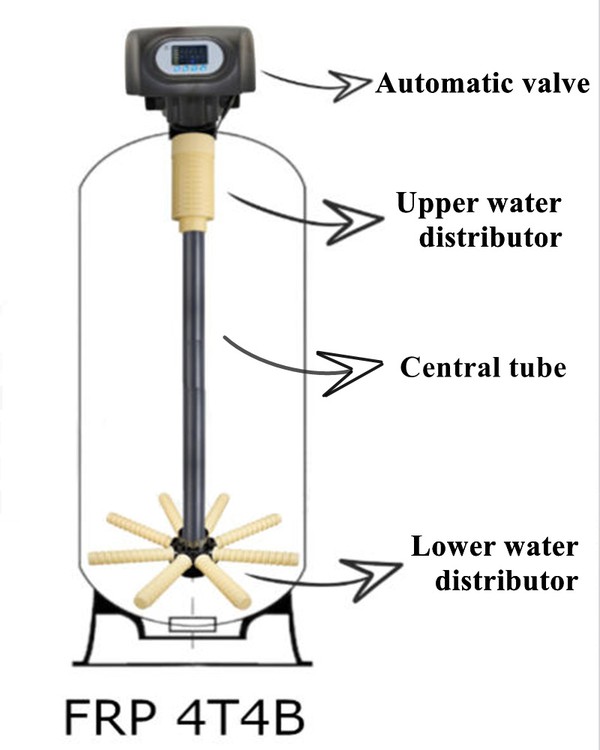

The following is a diagram showing the installation locations of various components in an FRP pressure tank. Taking a 4-inch opening tank as an example, it requires both upper and lower water distributors. The specific component list will vary depending on the tank model.
Benefits of FRP Vessel
- The inner lining is made of food-grade PE material, offering excellent chemical corrosion resistance.
- One-piece molding, seamless, no welding or seams.
- 100% non-metallic structure.
- High stability, durable and sturdy, easy to maintain, and resistant to large temperature differences.
- Weighs approximately one-third of a steel tank, facilitating handling.
- 5-year warranty.
- Highly customizable, various colors and sizes are available.
- Widely used in various commercial and industrial sectors such as chemical, petroleum, food and beverage, pharmaceutical, printing and dyeing, metal, power, and energy.
General model number coding rules and size table
FRP vessel coding rules
Small size:
Large size:
FRP vessel size chart
| Model | Diameter × Height (mm) | Capacity (L) | Amount of quartz sand that can be filled (kg) | Amount of activated carbon that can be filled (kg) | Amount of softening resin that can be filled (kg) | Packaging volume (m³) | Quantity can be packed in a 20GP (pcs) | Quantity can be packed in a 40HG (pcs) | 125 PSI packed weight (kg) | 150 PSI packed weight (kg) |
| 610-2.5'' | 166 × 259 | 3.2 | 4.8 | 1.6 | 2.6 | 0.007 | 3800 | 7871 | 1.0 | 1.0 |
| 613-2.5'' | 166 × 346 | 4.7 | 7.1 | 2.4 | 3.8 | 0.009 | 2956 | 6122 | 1.2 | 1.4 |
| 617-2.5'' | 166 × 437 | 6.5 | 9.8 | 3.3 | 5.2 | 0.012 | 2217 | 4592 | 1.5 | 1.7 |
| 618-2.5'' | 166 × 462 | 7.0 | 10.5 | 3.5 | 5.6 | 0.012 | 2217 | 4592 | 1.5 | 1.7 |
| 629-2.5'' | 166 × 741 | 12.0 | 18.0 | 6.0 | 9.6 | 0.019 | 1400 | 2900 | 2.0 | 2.2 |
| 635-2.5'' | 166 × 894 | 14.8 | 22.2 | 7.4 | 11.8 | 0.023 | 1157 | 2396 | 2.2 | 2.4 |
| 713-2.5'' | 188 × 335 | 5.9 | 8.9 | 3.0 | 4.7 | 0.012 | 2217 | 4592 | 1.4 | 1.5 |
| 717-2.5'' | 188 × 437 | 8.3 | 12.5 | 4.2 | 6.6 | 0.016 | 1663 | 3444 | 1.7 | 1.8 |
| 724-2.5'' | 188 × 625 | 12.4 | 18.6 | 6.2 | 9.9 | 0.022 | 1209 | 2505 | 2.1 | 2.2 |
| 730-2.5'' | 188 × 777 | 16.1 | 24.2 | 8.1 | 12.9 | 0.028 | 950 | 1968 | 2.4 | 2.6 |
| 735-2.5'' | 188 × 894 | 18.8 | 28.2 | 9.4 | 15.0 | 0.032 | 831 | 1722 | 2.7 | 3.0 |
| 744-2.5'' | 188 × 1124 | 24.2 | 36.3 | 12.1 | 19.4 | 0.04 | 665 | 1378 | 3.2 | 3.4 |
| 813-2.5'' | 215 × 338 | 8.0 | 12.0 | 4.0 | 6.4 | 0.016 | 1663 | 3444 | 1.6 | 1.7 |
| 817-2.5'' | 215 × 437 | 11.0 | 16.5 | 5.5 | 8.8 | 0.02 | 1330 | 2755 | 1.8 | 1.9 |
| 824-2.5'' | 215 × 625 | 16.8 | 25.2 | 8.4 | 13.4 | 0.029 | 917 | 1900 | 2.3 | 3.0 |
| 835-2.5'' | 215 × 895 | 25.2 | 37.8 | 12.6 | 20.2 | 0.042 | 633 | 1312 | 3.0 | 3.2 |
| 844-2.5'' | 215 × 1125 | 32.5 | 48.8 | 16.3 | 26.0 | 0.052 | 512 | 1060 | 3.7 | 4.0 |
| 917-2.5'' | 240 × 455 | 13.8 | 20.7 | 6.9 | 11.0 | 0.027 | 985 | 2041 | 2.3 | 2.4 |
| 935-2.5'' | 240 × 900 | 31.1 | 46.7 | 15.6 | 24.9 | 0.052 | 512 | 1060 | 3.6 | 3.7 |
| 942-2.5'' | 240 × 1073 | 37.8 | 56.7 | 18.9 | 30.2 | 0.062 | 429 | 889 | 4.5 | 4.6 |
| 948-2.5'' | 240 × 1225 | 43.7 | 65.6 | 21.9 | 35.0 | 0.065 | 409 | 848 | 4.9 | 5.1 |
| 1017-2.5'' | 266 × 429 | 16.4 | 24.6 | 8.2 | 13.1 | 0.031 | 858 | 1777 | 2.7 | 2.8 |
| 1019-2.5'' | 266 × 494 | 18.8 | 28.2 | 9.4 | 15.0 | 0.035 | 760 | 1574 | 3.0 | 3.2 |
| 1024-2.5'' | 266 × 622 | 25.0 | 37.5 | 12.5 | 20.0 | 0.044 | 605 | 1252 | 3.5 | 3.5 |
| 1035-2.5'' | 266 × 896 | 38.8 | 58.2 | 19.4 | 31.0 | 0.064 | 416 | 861 | 4.2 | 4.4 |
| 1044-2.5'' | 266 × 1135 | 50.0 | 75.0 | 25.0 | 40.0 | 0.08 | 333 | 689 | 5.0 | 5.4 |
| 1054-2.5'' | 266 × 1380 | 62.5 | 93.8 | 31.3 | 50.0 | 0.098 | 271 | 562 | 6.0 | 6.2 |
| 1054-2.5''-2.5'' | 266 × 1522 | 62.5 | 93.8 | 31.3 | 50.0 | 0.108 | 246 | 510 | 6.6 | 7.0 |
| 1236-2.5'' | 318 × 920 | 55.6 | 83.4 | 27.8 | 44.5 | 0.093 | 286 | 592 | 5.0 | 5.7 |
| 1248-2.5'' | 318 × 1233 | 77.5 | 116.3 | 38.8 | 62.0 | 0.125 | 213 | 441 | 6.0 | 7.1 |
| 1252-2.5'' | 318 × 1333 | 85.3 | 128.0 | 42.7 | 68.2 | 0.135 | 197 | 408 | 7.5 | 7.9 |
| 1265-2.5'' | 318 × 1633 | 108.5 | 162.8 | 54.3 | 86.8 | 0.165 | 161 | 334 | 9.0 | 9.3 |
| 1344-2.5'' | 343 × 1100 | 81.1 | 121.7 | 40.6 | 64.9 | 0.13 | 205 | 424 | 7.0 | 8.9 |
| 1354-2.5'' | 343 × 1350 | 102.3 | 153.5 | 51.2 | 81.8 | 0.159 | 167 | 347 | 8.0 | 9.8 |
| 1452-2.5'' | 369 × 1336 | 115.3 | 173.0 | 57.7 | 92.2 | 0.182 | 146 | 303 | 9.4 | 11.0 |
| 1452-4'' | 369 × 1336 | 115.3 | 173.0 | 57.7 | 92.2 | 0.182 | 146 | 303 | 9.4 | 11.0 |
| 1465-2.5'' | 369 × 1661 | 146.8 | 220.2 | 73.4 | 117.4 | 0.226 | 118 | 244 | 10.6 | 13.4 |
| 1465-4'' | 369 × 1661 | 146.8 | 220.2 | 73.4 | 117.4 | 0.226 | 118 | 244 | 10.6 | 13.4 |
| 1465-4''-4'' | 359 × 1850 | 146.8 | 220.2 | 73.4 | 117.4 | 0.239 | 111 | 231 | 11.2 | 14.0 |
| 1652-2.5'' | 428 × 1325 | 150.1 | 225.2 | 75.1 | 120.1 | 0.243 | 109 | 227 | 11.3 | 13.2 |
| 1652-4'' | 428 × 1325 | 150.1 | 225.2 | 75.1 | 120.1 | 0.243 | 109 | 227 | 11.3 | 13.2 |
| 1665-2.5'' | 428 × 1668 | 191.7 | 287.6 | 95.9 | 153.4 | 0.306 | 87 | 180 | 13.8 | 15.9 |
| 1665-4'' | 428 × 1668 | 191.7 | 287.6 | 95.9 | 153.4 | 0.306 | 87 | 180 | 13.8 | 15.9 |
| 1665-4''-4'' | 418 × 1877 | 191.7 | 287.6 | 95.9 | 153.4 | 0.328 | 81 | 168 | 14.9 | 16.8 |
| 1836-4'' | 465 × 920 | 118.1 | 177.2 | 59.1 | 94.5 | 0.199 | 134 | 277 | 9.0 | 11.0 |
| 1853-4'' | 465 × 1350 | 186.5 | 279.8 | 93.3 | 149.2 | 0.292 | 91 | 189 | 14.0 | 17.0 |
| 1865-4'' | 465 × 1655 | 235.0 | 352.5 | 117.5 | 188.0 | 0.292 | 91 | 189 | 16.0 | 20.0 |
| 1865-4''-4'' | 465 × 1873 | 235.0 | 352.5 | 117.5 | 188.0 | 0.405 | 66 | 136 | 18.0 | 22.0 |
| 2069-4'' | 512 × 1770 | 307.0 | 460.5 | 153.5 | 245.6 | 0.464 | 57 | 119 | 20.0 | 27.0 |
| 2069-4''-4'' | 512 × 1955 | 307.0 | 460.5 | 153.5 | 245.6 | 0.513 | 52 | 107 | 22.0 | 29.0 |
| 2136-4'' | 543 × 940 | 164.4 | 246.6 | 82.2 | 131.5 | 0.278 | 96 | 198 | 13.0 | 17.0 |
| 2153-4'' | 543 × 1370 | 257.9 | 386.9 | 129.0 | 206.3 | 0.404 | 66 | 136 | 18.0 | 22.0 |
| 2162-4'' | 543 × 1600 | 307.8 | 461.7 | 153.9 | 246.2 | 0.472 | 56 | 117 | 21.0 | 27.0 |
| 2162-4''-4'' | 543 × 1750 | 307.8 | 461.7 | 153.9 | 246.2 | 0.516 | 52 | 107 | 23.0 | 29.0 |
| 2465-4''-4'' | 614 × 1920 | 409.4 | 614.1 | 204.7 | 327.5 | 0.724 | 37 | 76 | 32.0 | 39.0 |
| 2472-4'' | 614 × 1884 | 460.5 | 690.8 | 230.3 | 368.4 | 0.711 | 37 | 77 | 35.0 | 41.0 |
| 2472-4''-4'' | 614 × 2080 | 460.5 | 690.8 | 230.3 | 368.4 | 0.785 | 34 | 70 | 37.0 | 43.0 |
| 3065-4''-4'' | 765 ×1855 | 616.4 | 924.6 | 308.2 | 493.1 | 1.09 | 23 | 48 | 49.0 | 54.0 |
| 3072-4'' | 765 × 1844 | 696.1 | 1044.2 | 348.1 | 556.9 | 1.08 | 23 | 48 | 56.0 | 55.0 |
| 3072-4''-4'' | 765 × 2035 | 696.1 | 1044.2 | 348.1 | 556.9 | 1.19 | 21 | 44 | 58.0 | 57.0 |
| 3065-6''-6'' | 765 × 2060 | 616.4 | 924.6 | 308.2 | 493.1 | 1.21 | 21 | 43 | 57.0 | 61.0 |
| 3072-6''-6'' | 765 × 2240 | 718.9 | 1078.4 | 359.5 | 575.1 | 1.32 | 19 | 40 | 65.0 | 64.0 |
| 3665-4''-4'' | 909 × 1910 | 860.0 | 1290.0 | 430.0 | 688.0 | 1.6 | 16 | 33 | 63.0 | 78.0 |
| 3672-4''-4'' | 909 × 2090 | 969.2 | 1453.8 | 484.6 | 775.4 | 1.74 | 14 | 30 | 69.0 | 84.0 |
| 3665-6''-6'' | 909 × 1980 | 860.0 | 1290.0 | 430.0 | 688.0 | 1.66 | 15 | 31 | 68.0 | 83.0 |
| 3672-6''-6'' | 909 × 2160 | 969.2 | 1453.8 | 484.6 | 775.4 | 1.8 | 14 | 29 | 74.0 | 89.0 |
| 4065-4''-4'' | 1000 × 1950 | 1087.1 | 1630.7 | 543.6 | 869.7 | 1.95 | 13 | 27 | 83.0 | 97.0 |
| 4065-6''-6'' | 1000 × 2040 | 1087.1 | 1630.7 | 543.6 | 869.7 | 2.05 | 12 | 25 | 88.0 | 102.0 |
| 4079-4''-4'' | 1000 × 2310 | 1257.5 | 1886.3 | 628.8 | 1006.0 | 2.31 | 11 | 23 | 100.0 | 113.0 |
| 4079-6''-6'' | 1000 × 2360 | 1257.5 | 1886.3 | 628.8 | 1006.0 | 2.36 | 11 | 22 | 105.0 | 118.0 |
| 4272-6''-6'' | 1070 × 2200 | 1387.5 | 2081.3 | 693.8 | 1110.0 | 2.52 | 10 | 21 | 96.0 | 112.0 |
| 4872-6''-6'' | 1217 × 2260 | 1751.3 | 2627.0 | 875.7 | 1401.0 | 3.37 | 7 | 15 | 122.0 | 137.0 |
| 4894-6''-6'' | 1217 × 2400 | 1910.0 | 2865.0 | 955.0 | 1528.0 | 3.58 | 7 | 15 | 151.0 | 173.0 |
| 6079-6''-6'' | 1500 × 2425 | 3011.5 | 4517.3 | 1505.8 | 2409.2 | 5.47 | 5 | 10 | 197.0 | 227.0 |
| 6367-6''-6'' | 1609 × 2110 | 2629.8 | 3944.7 | 1314.9 | 2103.8 | 5.58 | 5 | 9 | 194.0 | 223.0 |
| 6386-6''-6'' | 1609 × 2460 | 3424.5 | 5136.8 | 1712.3 | 2739.6 | 6.4 | 4 | 8 | 220.0 | 265.0 |
| 7279-6''-6'' | 1800 × 2605 | 4610.3 | 6915.5 | 2305.2 | 3688.2 | 8.5 | 3 | 6 | 310.0 | 407.0 |
What kinds of filter media can be filled into FRP tanks?
Quartz sand
Natural manganese sand
Activated carbon
Ion exchange resins
Production Process of FRP Vessel
Step1: Inner Liner Production
The production begins with a seamless polyethylene (PE) inner liner, formed through rotational molding.
This one-piece liner creates a smooth internal surface, ensuring excellent corrosion resistance and completely eliminating leakage risks caused by welding or joints.
Step2: Filament Winding & Structural Reinforcement
After liner forming, the tank enters the automated filament winding stage.
Using PLC-controlled computer-assisted winding machines, continuous fiberglass rovings are precisely wound onto a rotating mold.
This process allows:
- High fiber content ratio
- Accurate fiber orientation control
- Uniform wall thickness distribution
The filament winding structure provides high tensile strength and an excellent strength-to-weight ratio, making the tank suitable for pressure vessels and cylindrical chemical storage applications.
Step3: Thermal Curing
The wound tank is then transferred to a controlled temperature curing environment.
During this stage:
- Epoxy or polyester resin fully cross-links
- Fiberglass layers are permanently bonded
- Structural stability and pressure resistance are achieved
The optimized curing process enables the FRP tank to withstand working pressures up to 10.5 kg/cm² without structural damage or deformation.
Step4: Opening Machining & Assembly
Once cured, precision machining is performed to create top and/or side openings according to design requirements.
Threaded inserts or flange connections are installed, followed by:
- Valve interfaces
- Distributors (if required)
- Base assembly
All components are fitted to ensure airtight sealing and mechanical reliability.
Step5: Hydrostatic Pressure Testing
Every FRP tank undergoes a hydrostatic pressure test before delivery.
The test verifies:
- Pressure resistance
- Structural integrity
- Leak-free performance
Only tanks that pass the pressure test are approved for final packaging.
Step6: Packaging
After testing, each tank is cleaned, inspected, and packed using export-grade protective materials.
Standard packaging includes:
- Protective film and foam
- Carton or palletized packaging
- Reinforced strapping for safe transportation
This ensures the FRP tank arrives in perfect condition, ready for installation.
FRP Vessel core process: Filament winding process
Filament winding is an open molding process automatically controlled by a PLC, utilizing a rotating mold made of FRP (fiber-reinforced polymer). This process simultaneously creates a smooth inner surface and a uniform, dense outer layer, ensuring consistency in both the strength and appearance of the finished product.
Through automated control, the filament winding process precisely controls the fiber laying angle and distribution, resulting in high-strength, lightweight, and stable composite material structures. Compared to traditional molding methods, it has a higher fiber content, significantly improving the product's mechanical properties.
This process is particularly suitable for manufacturing hollow cylindrical products such as pressure vessels, chemical storage tanks, and water treatment equipment tanks. The finished products possess extremely high tensile strength and pressure resistance, capable of stably withstanding an internal pressure of 10.5 kg/cm² without structural damage.
Furthermore, filament-wound pressure vessels exhibit excellent hydraulic performance and complete corrosion resistance, making them ideal for long-term use in water treatment, chemical, and corrosive media environments.
FRP Tank quality inspection process
1.2 times water pressure test
- Testing standard: Each FRP storage tank must undergo a hydrostatic pressure test before leaving the factory.
- Testing requirements: Test pressure of 1.2 times or more; pressure rise rate of 0.4 MPa/s.
- Required test results: No leakage/seepage from the FRP storage tank.
100,000 fatigue tests
● Testing Standards:
8”–10”: One tank is tested for every 1000 tanks;
12”–16”: One tank is tested for every 750 tanks;
18”–24”: One tank is tested for every 400 tanks;
Greater than 30”: One tank is tested for every 300 tanks.
● Testing Requirements:
Test pressure is 1.1 times the working pressure;
Pressure rise rate is 6–16 times/minute;
100,000 fatigue tests are conducted to ensure the durability of the tank.
● Test Result Requirement: No leakage in the FRP tank.
Exceeded the pressure test limit more than 4 times
● Testing Standards:
8”–10”: One tank tested for every 600 tanks;
12”–16”: One tank tested for every 400 tanks;
18”–24”: One tank tested for every 250 tanks;
Greater than 30”: One tank tested for every 200 tanks.
● Testing Requirements:
Test pressure is 4 times the working pressure;
Pressure rise rate is 0.4 MPa/s.
● Required Test Results: No leakage in the FRP tanks.
Application areas
- RO pretreatment systems
- Industrial water softeners
- Sand, carbon, and multimedia filters
- Deionization and desalination units
- Food & beverage processing
- Pharmaceutical & medical water systems
- Agricultural irrigation systems
Packing
- Each of our products comes with a label indicating the model, pressure rating, and safety precautions.
- We measure the levelness of the FRP tanks with a ruler to ensure they are level before packaging.
- We maximize space utilization to ensure the products are packed securely and without damage in the container.
- Small diameter FRP tanks are packaged in cardboard boxes.
- Large diameter FRP tanks are packaged with bubble wrap.
Note: FRP tanks should be stored in their original packaging before installation. Do not unpack them before installation.
Transportation and installation
Loading and unloading method
- For 21" FRP Tanks Loading: FRP tanks with a diameter of 21" and below shall be handled manually. Please handle with care to prevent falling and collisions.
- For 24" FRP Tanks Loading: Fiberglass storage tanks with a diameter of 24 inches or more should be handled using a forklift or crane. If the fiberglass storage tank has a flange on the top port, it can be lifted using a crane. If the fiberglass storage tank does not have a flange on the top port, it should be handled using a forklift.
- For 40" FRP Tanks Installation: For large FRP storage tanks with a diameter of 40 inches or more, the lifting procedure is the same as the standard lifting procedure for FRP storage tanks with a diameter of 24 inches or more. Before lifting, all external packaging materials should be removed to ensure safe and smooth lifting operations. After the tank is in place and filled with material, it must be securely fixed to the ground. It is recommended to use pressure plates and expansion bolts to securely fasten the FRP storage tank to the foundation, preventing displacement or tipping during operation.
Precautions
- Wear rubber gloves when handling or installing FRP tanks.
- Do not roll or slide FRP tanks.
- Do not drop or strike FRP tanks. Do not allow FRP tanks to collide with walls or other equipment.
- Use a forklift or crane to lift FRP tanks; standard lifting procedures must be followed.
- Do not use hooks to lift FRP tanks from the inside. You can lift FRP tanks from the external flange to avoid damaging the inner lining.
- Do not use steel wires or chains to secure FRP tanks. You can use canvas bags or nylon bags to prevent FRP tanks from slipping.
Why choose INK-BLUE to buy your FRP tanks?
Xi'an Ink-blue Environmental Protection Technology Co., Ltd.
Xi'an Ink-blue Environmental Protection Technology Co., Ltd. is a comprehensive supplier of water treatment equipment integrating design, production, sales, and installation. The product line includes a complete set of water treatment systems, RO membranes, membrane housings, FRP pressure vessels, filter elements, filter cartridge housings, etc. Ink-blue Environmental Protection Technology has a team of engineers who can design and provide customers with targeted water treatment solutions based on actual conditions. Of course, we can also manufacture products according to customers' drawings or samples.
Our customers are worldwide, mainly in the Middle East, Asia, Africa and Europe. The business scope covers various industries such as drinking water production and treatment, sewage treatment, seawater desalination, medical, pharmaceutical, food, beverage, chemical, agricultural irrigation, etc.
Team composition
We have a team of engineers who can tailor water treatment solutions for customers. On-site installation & technical guidance services are also available. (for large projects)
OEM design
We can customize products and LOGO and produce products according to the drawings provided by customers, which is conducive to customers strengthening their brand effect.
Stable delivery
The on-time delivery rate is more than 90%, ensuring the customer's market plan and sales cycle.
Warranty and after-sales
All products provide a two-year warranty and lifetime after-sales service to help customers open up the market without worries.
Certificate Display
ASME
CE
NSF
Test report
ISO 9001
QMS
Procurement Information
- Production cycle: 3-7 working days
- Shipping time: Depends on the shipping method. By sea, it's generally 20-30 days, depending on the shipping company and customs clearance.
- MOQ: 5
- Payment terms: T/T, L/C
- Quality certifications: NSF, CE, ISO9001
- Product colors: Original color and blue are standard colors; other colors require customization.
Frequently Asked Questions about Purchasing FRP Vessels
Q: How do I choose the right model?
A: FRP tank models are globally standardized. If you're just replacing an existing tank, simply find the current model number on the tank's label. If you're purchasing a new tank and don't know which to buy, just tell me your required flow rate and opening size.
Q: Do you have NSF certification?
A: Yes, all of our FRP vessels are NSF certified. You can inquire and purchase with confidence.
Q: What accessories are included with an FRP vessel?
- A standard tank includes the tank itself, as well as the openings and base.
- A complete system should also include core components such as a water distributor, an automatic valve, and a central pipe, which are not included by default. If you require these components, please specify this when requesting a quote.
Q: Do you have technical drawings?
A: We have corresponding technical specifications and drawings for virtually all models. Ink-Blue Environmental Protection will send you the technical drawings along with the quotation.
Q: What is your minimum order quantity (MOQ)?
- For sizes under 16 inches: 50 pieces
- For sizes 16-24 inches: 20 pieces
- For sizes 24-36 inches: 10 pieces
- For sizes over 36 inches: 5 pieces
Q: If I place a large order, can I get free samples?
A: We will charge a sample fee first and then deduct the sample fee from the bulk order later, which is equivalent to the samples being free.
