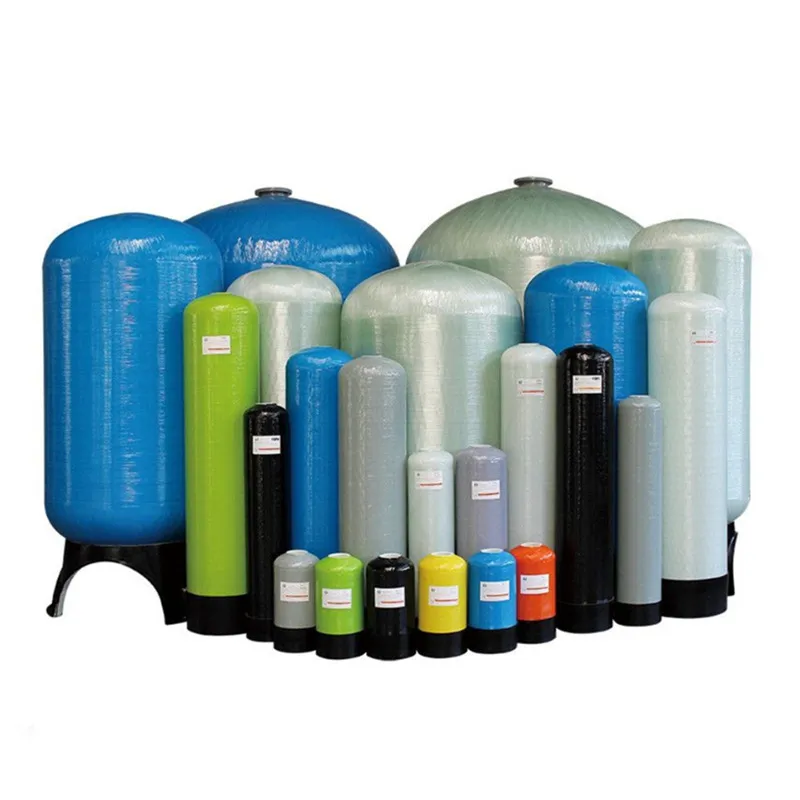

FRP Softener Vessel



🔹 The FRP Softener Vessel is a high-performance pressure filtration tank designed for industrial and municipal water treatment systems.
Made from fiberglass-reinforced plastic (FRP) and food-grade PE liner, it replaces traditional steel vessels with superior corrosion resistance, light weight, and extended service life.

As an essential component of RO pretreatment, ion exchange, and media filtration systems, this vessel removes:

• Suspended solids
• Turbidity
• Iron and manganese
• Chlorine and organic contaminants

Compatible with diverse filter media such as quartz sand, activated carbon, anthracite, or manganese greensand, it ensures consistent water clarity with inlet turbidity ≤20 NTU and outlet ≤3 NTU.

Built for reliability, the FRP Softener Vessel withstands 150 psi working pressure and temperature up to 50°C, performing flawlessly even in high-salinity or high-chloride environments.

✅ Xi'an Ink-blue Environmental Protection Technology Co., Ltd. provides a full range of FRP storage tanks and corresponding accessories for all models. We help you assemble a complete FRP filtration system in one stop.









General parameters:

Parameter	Value
Product Model	813–6096
Working Pressure	≤150 psi
Working Temperature	1–50°C
Material	FRP + PE Inner Liner
Cycle Times	100,000 times
Flowrate	0.1–50 m³/h
Connection Type	Threaded / Flanged
Media Compatibility	Quartz Sand / Activated Carbon / Manganese / Resin
Color Options	Blue / Grey / Natural / Customized
Installation	Vertical / Horizontal

(Additional model size table available upon request)



Specific model size table:

Model	Size	Opening	Flow rate (m³/h)
813	Ф215×335	Opening 2.5″ on top	0-0.2
817	Ф215×445
835	Ф215×905		0.2-0.5
844	Ф215×1130
1017	Ф270×445		0.5-1.0
1035	Ф270×905
1044	Ф270×1130		0.6-1.2
1054	Ф270×1390		0.6-1.5
1248	Ф320×1230		1.6-2.2
1252	Ф320×1340
1265	Ф320×1650		1.6-2.3
1344	Ф325×1140		2.0-2.5
1354	Ф325×1400
1465	Ф373×1670		2.5-3.0
1465	Ф373×1670	Opening 4″ on top
1665	Ф420×1670	Opening 2.5″ on top	3.2-4.5
1665	Ф420×1670	Opening 4″ on top
2162	Ф530×1750		4.0-5.5
2162	Ф530×1750	Opening 4″ on top and bottom	4.5-6.0
2187	Ф530×2200		4.5-6.1
2472	Ф630×1850	Opening 4″ on top	6.1-7.2
2472	Ф630×1850	Opening 4″ on top and bottom
2487	Ф630×2200		7.2-8.2
3072	Ф760×1850	Opening 4″ on top	8.2-10
3072	Ф760×1850	Opening 4″ on top and bottom
3087	Ф760×2200		10-13.2
3672	Ф910×1850		13.2-16.2
3696	Ф910×2400		16.2-22.0
4872	Ф1200×1850	Opening 6″ on top and bottom	22.0-27.0
4896	Ф1200×2400		28.0-38.0
6096	Ф1500×2400		38.0-50.0





Universal FRP Tanks Structure:

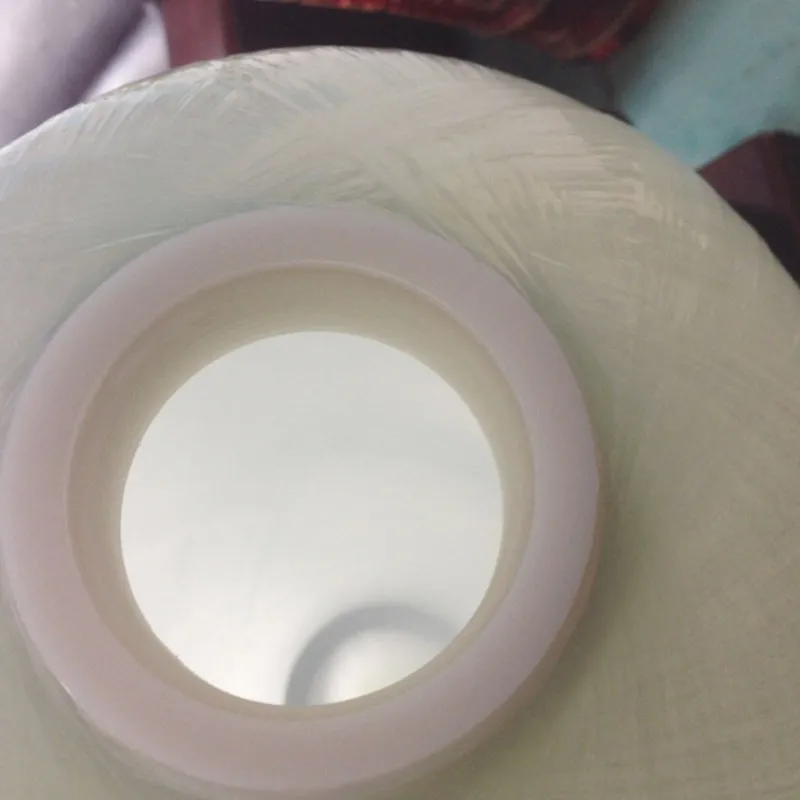

Universal FRP tanks are generally composed of an upper opening, a lower opening (except for 2.5" and part of 4"), tank body and a base.

• PPO material, thread connection (2.5" and 4")
• Aviation aluminum, flange connection (6")

👉 Base:

• Standard base: reinforced plastic (tank size: 6"–16");
• Round base: reinforced plastic (tank size: 18"–21");
• Tripod base: FRP (tank size: 24"–80")







✅ Corrosion-Resistant Construction – Non-metallic FRP eliminates rust, oxidation, and corrosion issues.
✅ High Durability – Over 150,000 tested cycles ensure long service life under high pressure.
✅ Lightweight & Easy Installation – 1/4 the weight of steel tanks, lowering logistics and labor costs.
✅ Cost-Efficient Operation – Compatible with automatic backwash valves to reduce manual intervention.
✅ Modular & Scalable – Suitable for single-tank, twin-tank, or multi-media configurations.
✅ Environmental Compliance – Non-toxic materials, recyclable FRP, compliant with NSF/CE/ISO standards.







• RO Pretreatment Systems – Remove suspended solids before reverse osmosis.
• Industrial Water Softening – Protects boilers, chillers, and cooling towers.
• Municipal Water Supply – Improves water clarity and reduces iron content.
• Food & Beverage Production – Ensures hygienic filtration for ingredient water.
• Agricultural Irrigation – Reduces sediment and hardness for crop protection.







The FRP vessel operates under pressure:

1. Raw water enters through the top distributor.
2. Water passes downward through selected filtration media.
3. Contaminants are trapped, and clear water exits via the lower collector.
4. Periodic backwashing regenerates the media and maintains flow efficiency.

Its smooth interior prevents media loss and scaling, while its seamless structure ensures zero leakage even in long-term operation.







Client: Water Treatment EPC Contractor – Saudi Arabia
Project: Industrial RO Pretreatment Upgrade
Configuration: 3× FRP Softener Vessels (Model 4872)
Feed Water: Groundwater with 18 NTU turbidity
Result:

• Outlet clarity improved to 2.3 NTU
• Reduced chemical dosing by 22%
• Achieved a stable RO recovery rate of 68%

Client Feedback:

"The FRP vessels were easy to install, lightweight yet extremely durable. Maintenance has been almost zero after 12 months of operation."







🏆 All INK-BLUE FRP vessels are produced under ISO 9001-certified facilities.
They comply with CE, ISO, and NSF standards for safe use in potable and industrial water systems.

Our quality tests include:

• Hydrostatic Pressure Test (150 psi)
• Burst Test (3× working pressure)
• 100,000-cycle fatigue test

Below are our latest certification and inspection reports:



Certifications showcase:



Factory quality inspection steps:

Before leaving the factory, we conduct three quality inspections. These are:









📦 Each FRP softener tank is securely packed in foam-protected cartons or wooden pallets, ensuring safe global delivery.

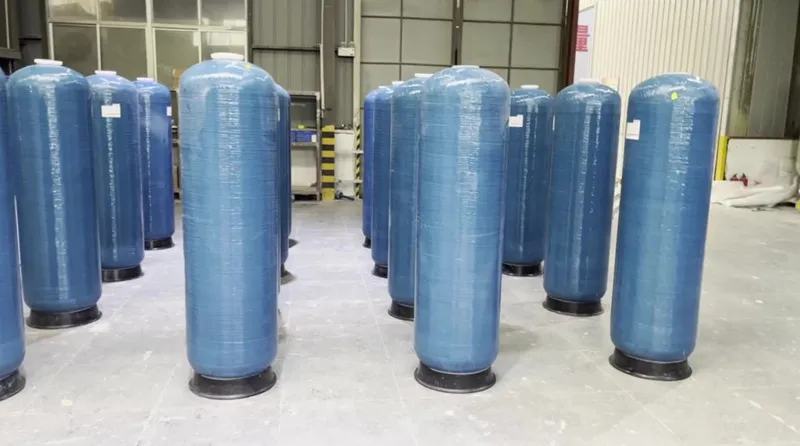

Below are real photos of our factory production and export packaging.





Procurement Information:

• Production cycle: 3-7 working days
• Shipping time: Depends on the shipping method. By sea, it's generally 20-30 days, depending on the shipping company and customs clearance.
• MOQ: 10
• Payment terms: T/T, L/C
• Quality certifications: NSF, CE, ISO9001
• Product colors: Original color and blue are standard colors; other colors require customization.
• Packing: Small-diameter FRP tanks are packaged in cardboard boxes, while large-diameter tanks are packaged with bubble wrap.





FAQ

Q1: What is the lifespan of an FRP Softener Vessel?
A1: Typically 10–15 years, depending on pressure, temperature, and feed water quality.

Q2: Can FRP vessels handle seawater or high-chloride environments?
A2: Yes. The corrosion-resistant FRP and PE liner are designed for high-salinity water.

Q3: Is the vessel compatible with automatic softener valves (FLECK / RUNXIN)?
A3: Absolutely. All models are compatible with standard top-mount or side-mount control valves. Additionally, when providing a quote, we can directly quote the price for the complete set, including all accessories.

Q4: What kind of maintenance is required?
A4: Only periodic backwash and resin/media replacement every 12–18 months.

Q5: Do you support custom size and color?
A5: Yes, OEM customization is available for capacity, flange type, and tank color.
