FRP Vessel 1665
FRP filter tank accessory
1665 FRP Vessel tank

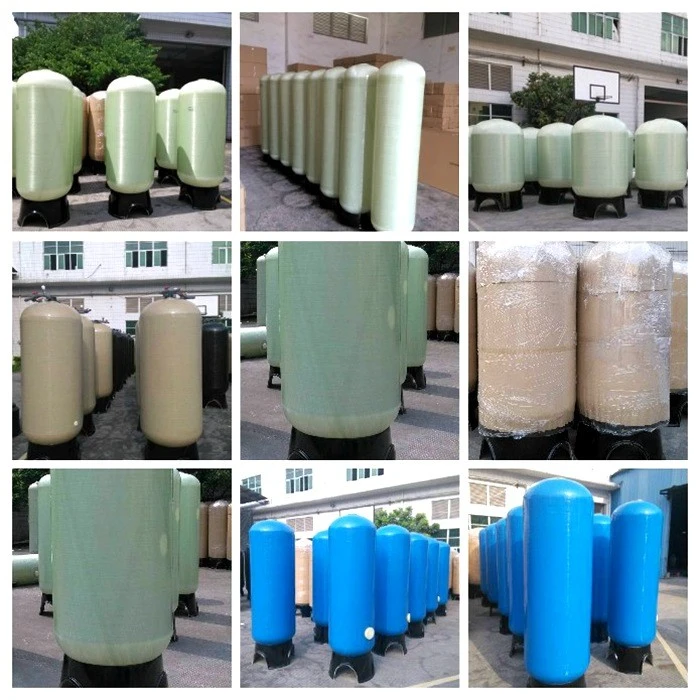

1665 FRP filter tank

FRP Vessel 1665

Name: FRP Vessel 1665 Pressure Tank | 16×65 FRP Filter Tank for Water Treatment - Ink-blue Environmental
Brand: Ink-blue
SKU: 254642390

Product type: FRP filter tank
Model: 1665
Material: PE+FRP
Opening: 2.5 or 4 inches, threaded
Diameter: 16 inches (410 mm)
Height: 65 inches (1660 mm)
FRP Vessel 1665 Volume: 180 liters (47.57 gallons)
Max working temperature: 50℃
Max working pressure: 150 PSI (1.03MP)
Max vacuum: 17KPa(5″Hg)
Flowrate: 3.2-4.5 m³/h

Send Inquiry

FRP-vessel-tank-data-sheet.pdf

Product Introduction

Products Description

In water treatment FRP Vessel tanks, the 1665 model usually has three opening styles: 2.5-inch Top Opening, 4-inch Top Opening, and 4-inch Top and Bottom Opening.
2.5" Top Opening FRP Vessel 1665 has a 2.5" diameter opening at the top. This opening size is suitable for smaller pipe connections or for connecting smaller accessories. It is commonly used in water treatment systems for filling and replacement of filter media.
The 4" Top Opening 1665 FRP Tank has a 4" diameter opening at the top. This larger opening size is suitable for larger pipe connections or for connecting larger accessories. It is typically used in water treatment systems that require higher flow rates and treatment capabilities.
4" Top and Bottom Opening 1665 FRP filter tanks feature 4" diameter openings on both the top and bottom. This design allows the water treatment system to have media loading and discharge at the top and bottom of the tank. It provides greater flexibility and ease of operation and maintenance.

2.5 inch Top Opening 1665 FRP Vessel

Features of FRP Vessel 1665

1. High-Performance HDPE Liner

The vessel features a high-performance HDPE liner that is safe for human use. It can withstand low temperatures, has a long lifespan, and allows for filling with various filter materials, providing flexibility in water treatment applications.

2. Fiberglass Shell Construction

The vessel is made of a fiberglass shell, which gives it a beautiful appearance and makes it suitable for commercial and industrial water treatment. The fiberglass construction offers excellent corrosion resistance, ensuring the vessel's longevity.

3. Versatile Application

The FRP Vessel finds wide applications in water and wastewater purification treatment, including media filters and water softeners. It is also suitable for use in fields such as food environmental protection, making it a versatile choice for different industries.

4. Tight Mouth Design

The FRP tank body is formed by winding fiberglass-reinforced plastics, and the tank mouth adopts a one-piece molding technology. This design ensures clear threads and a tight fit, preventing leakage and ensuring efficient operation.

5. Filter Media Selection

The vessel allows for filling various filter media based on specific needs. Options include activated carbon for removing odors and enhancing taste, resin for reducing water hardness and addressing scaling issues, quartz sand for removing suspended solids and large impurities, and manganese sand for removing manganese, iron, and other elements.

Technical Parameters

Product type	FRP filter tank
Model	1665
Material	PE+FRP
Opening	2.5 inch, threaded
Diameter	16 inches (410 mm)
Height	65 inches (1660 mm)
FRP Vessel 1665 Volume	180 liters (47.57 gallons)
Max working temperature	50℃
Max working pressure	150 PSI (1.03MP)
Max vacuum	17KPa(5″Hg)
Flowrate	3.2-4.5 m³/h
Weight	About 16kg

1665 FRP vessel technical drawing:

How many 1665 FRP vessels can be packed in one container?

20GP	About 90pcs
40HG	About 190pcs

FRP vessel pack in container

1665 FRP vessel Customer Case

Commercial Water Filtration Project – Southeast Asia

A commercial building project required a compact and stable filtration vessel for pretreatment.

INK-BLUE recommended the FRP Vessel 1665 with 4-inch top opening, loaded with quartz sand and activated carbon.

Result:

Stable operation at 4 m³/h
Easy installation and maintenance
No leakage reported after long-term operation

The customer later expanded the project using multiple INK-BLUE FRP vessels.
