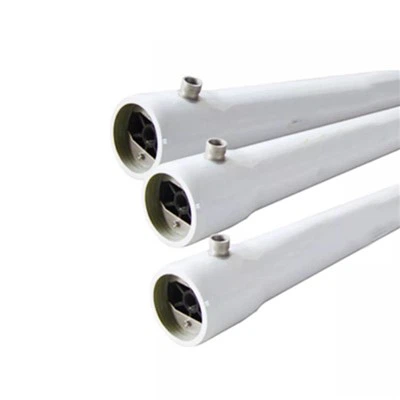

8080 Membrane Housing

8080 membrane housing features

• Advanced Automated Manufacturing: The 8080 Membrane Housing is crafted via a computer-controlled precision molding process, utilizing high-performance epoxy resin and fiber composites. This method ensures exceptional resistance to pressure, temperature extremes, and corrosion-surpassing traditional materials like steel or plastic in durability and longevity.
• Superior Thermal Insulation: With a thermal conductivity range of 0.15–1.36 W/m·K (just 1/200th of metal), the FRP (fiberglass-reinforced plastic) construction provides unmatched insulation. This shields internal RO membranes from external temperature fluctuations, optimizing membrane efficiency and stability.
• Corrosion-Resistant Engineering: A proprietary blend of glass fibers and epoxy resin creates a chemically inert surface, resistant to low-concentration acids, alkalis, salts, and oils. This design inhibits microbial growth and saltwater corrosion, ensuring decades of reliable performance in harsh environments.
• Reinforced Structural Design: Precision-engineered layering and optimized stress distribution across the barrel, end caps, and ports guarantee structural integrity under sustained high pressure. The upgraded brine-side port configuration supports multi-port customization (e.g., four side ports per head) while maintaining safety and adaptability during installation.
• Cross-Brand Compatibility: The 8080 Membrane Housing seamlessly integrates with global RO membrane brands like Dow, Hydranautics, GE, CSM, and Vontron. Its standardized dimensions and adaptable design simplify retrofits or upgrades across industrial, municipal, and desalination systems.

Specification

Housing material: FRP

End cap material: ABS engineering plastic

Maximum pressure resistance: 300psi, 450psi, 600psi, 800psi

Water inlet: 1″ internal thread

Water outlet: 1″ internal thread

Model: 8040, 8080, 80120, 80160, 80200…

Membrane Housing Disassembly Instructions

• To completely release the pressure in the membrane shell, close the water inlet valve;
• Use an Allen wrench to remove the security screw of the crescent retaining ring, and use a leather hammer to knock the end plate to loosen the crescent retaining ring to facilitate the removal of the retaining ring;
• Use the bolt of the special tool to screw into the inner hole of the clean water outlet, use the plate rod to rotate the bolt, and slowly pull out the end assembly;
• The removed parts should be stored to avoid missing parts when reinstalling.
