Stainless Steel Membrane Housing
Material: SS304
Max. pressure: 300PSI (20bar)
Length:1-4 membrane element
Inlet: 1/2’’ or 3/4’’
Outlet: 1/2’’
Operating temperature: 1-90℃ (34-194 ℉)
Vessel tube: seamless / has seams
Stainless Steel Membrane Housing

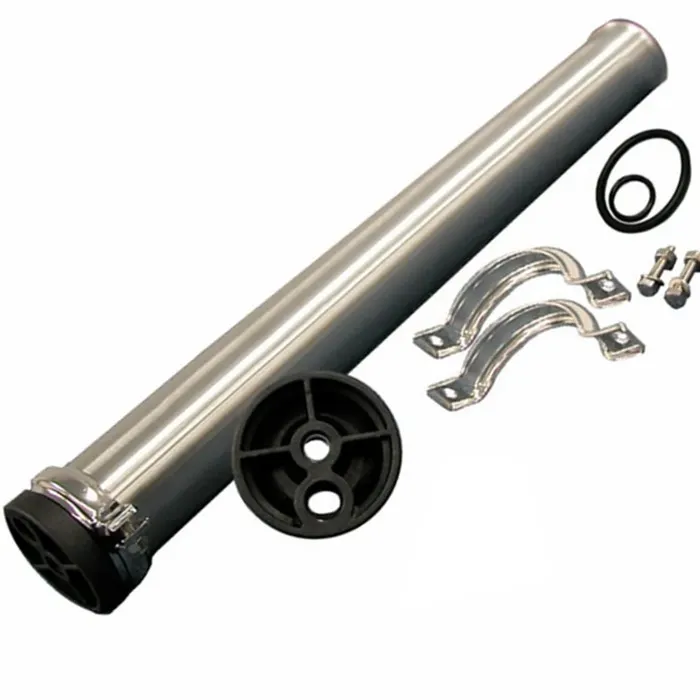

4040 membrane housing is divided into two types: seamed and seamless, made of SUS304 stainless steel. Both ends are sealed with ABS heads and silicone O-rings, with high sealing performance and long service life.
8040 membrane housing: divided into two types: ferrule and end cover, made of SUS304 seamless stainless steel pipe, with good sealing performance, high-pressure resistance, no aging, easy installation and cleaning of membrane, working pressure (Mpa): 4.0. The inlet and outlet of the membrane shell can be end inlet (outlet) or side inlet (outlet) according to customer requirements.
Features
- The housing is made of 304 stainless steel tubes, and the membrane housing is polished inside and outside. Both ends are sealed with ABS heads and silicone O-rings, with high sealing performance and long service life.
- Water inlet method: water inlet at both ends (Type A), water inlet on both sides (Type B).
- Structure: standard spare parts, easy and quick to disassemble.
- Sealing: pressure-resistant test.
Specification
① RO40 stainless steel membrane housing, clamp-type, seamed, ABS end cap
| Model | L (mm) | L1 (mm) | D (mm) | A (inch) | B (mm) |
| 4021 | 591 | 540 | 102 | 3/4'' (DN20) | 1/2'' (DN15) |
| 4040 | 1075 | 1024 | 102 | 3/4'' (DN20) | 1/2'' (DN15) |
| 4040-2 | 2090 | 2039 | 102 | 3/4'' (DN20) | 1/2'' (DN15) |
Material: SUS304, SUS316L
End cap material: ABS
Maximum working pressure: 250 psi
Surface treatment: mirror polishing or brushed
Seal material: silicone
② RO40 stainless steel membrane housing, quick install type, seamless, stainless steel end cap
| Model | L (mm) | L1 (mm) | D (mm) | A (inch) | B (mm) |
| 4021 | 609 | 525 | 102 | 3/4'' (Φ25) | 1/2'' (Φ19) |
| 4040 | 1094 | 1010 | 102 | 3/4'' (Φ25) | 1/2'' (Φ19) |
| 4040-2 | 2115 | 2020 | 102 | 3/4'' (Φ25) | 1/2'' (Φ19) |
| 4040-3 | 3120 | 3036 | 102 | 1'' (Φ38) | 1/2'' (Φ19) |
Material: SUS304, SUS316L
End cap material: SUS304, SUS316L
Maximum working pressure: 400 psi
Surface treatment: mirror polishing or brushed
Seal material: silicone

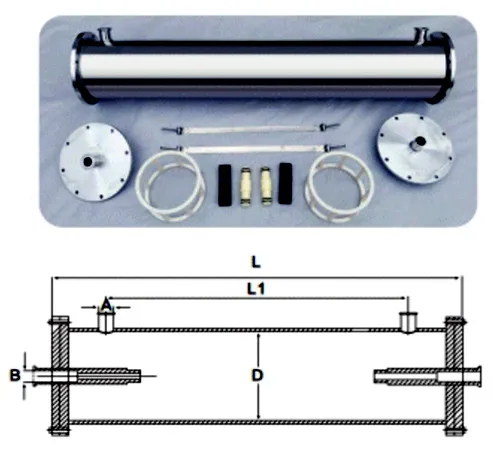

③ RO80 stainless steel membrane housing, flange type
| Model | L (mm) | L1 (mm) | D (mm) | A (inch) | B (mm) |
| 8040 | 1296 | 1100 | 203 | 1.5'' (Φ38) | 1'' (Φ32) |
| 8040-2 | 2312 | 2116 | 203 | 1.5'' (Φ38) | 1'' (Φ32) |
| 8040-3 | 3328 | 3132 | 203 | 2'' (Φ51) | 1'' (Φ32) |
| 8040-4 | 4344 | 4148 | 203 | 2'' (Φ51) | 1'' (Φ32) |
| 8040-5 | 5360 | 5164 | 203 | 2'' (Φ51) | 1'' (Φ32) |
| 8040-6 | 6376 | 6180 | 203 | 2'' (Φ51) | 1'' (Φ32) |
Material: SUS304, SUS316L
End cap material: SUS304, SUS316L
Maximum working pressure: 450 psi
Surface treatment: mirror polishing or brushed
Seal material: silicone
④ RO80 stainless steel membrane housing, build-in type
| Model | L (mm) | L1 (mm) | D (mm) | A (inch) | B (mm) |
| 8040 | 1336 | 1100 | 203 | 1.5'' (Φ38) | 1'' (Φ32) |
| 8040-2 | 2352 | 2126 | 203 | 1.5'' (Φ38) | 1'' (Φ32) |
| 8040-3 | 3368 | 3142 | 203 | 2'' (Φ51) | 1'' (Φ32) |
| 8040-4 | 4384 | 4158 | 203 | 2'' (Φ51) | 1'' (Φ32) |
| 8040-5 | 5400 | 5174 | 203 | 2'' (Φ51) | 1'' (Φ32) |
| 8040-6 | 6416 | 6190 | 203 | 2'' (Φ51) | 1'' (Φ32) |
Material: SUS304, SUS316L
End cap material: SUS304, SUS316L
Maximum working pressure: 450 psi
Surface treatment: mirror polishing or brushed
Seal material: silicone
⑤ RO80 stainless steel membrane housing, clamp type
| Model | L (mm) | L1(mm) | D (mm) | A (inch) | B (mm) |
| 8040 | 1296 | 1100 | 203 | 1.5'' (Φ38) | 1'' (Φ32) |
| 8040-2 | 2312 | 2116 | 203 | 1.5'' (Φ38) | 1'' (Φ32) |
| 8040-3 | 3328 | 3132 | 203 | 2'' (Φ51) | 1'' (Φ32) |
| 8040-4 | 4344 | 4148 | 203 | 2'' (Φ51) | 1'' (Φ32) |
| 8040-5 | 5360 | 5164 | 203 | 2'' (Φ51) | 1'' (Φ32) |
| 8040-6 | 6376 | 6180 | 203 | 2'' (Φ51) | 1'' (Φ32) |
Material: SUS304, SUS316L
End cap material: SUS304, SUS316L
Maximum working pressure: 300 psi
Surface treatment: mirror polishing or brushed
Seal material: silicone
