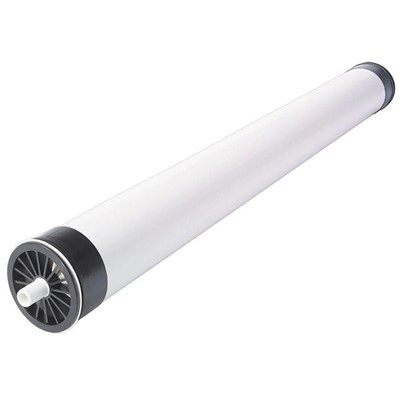

UF Membrane Water Filter
Filtering Precision: 0.01μm
Porosity:＞95%
Operating Pressure: ＜0.3MPA
Max operating temperature: ＜45℃
Membrane material: PAN/PVC/PVDF all available
Operation method: Inside-Out, Outside-In
Porosity:＞95%
Operating Pressure: ＜0.3MPA
Max operating temperature: ＜45℃
Membrane material: PAN/PVC/PVDF all available
Operation method: Inside-Out, Outside-In
Send Inquiry
Product Introduction
Operating conditions
Recommended Inlet Pressure: 44-60 psi (3.0-4.1 bar)
Maximum Inlet Pressure: 65 psi (4.4 bar)
Recommended outlet pressure: 15-40psi(1.0-2.7bar)
Maximum operating temperature: 122°F (50°C)
PH value range (continuous operation): 2.0-10.0
PH value range (short-time cleaning): 2.0-11.5 at 50℃,
30min Feed volume: 20-24 gallon/minute (76-91L/M)
Design Parameters Yield: 0.7-1.0 gallon/minute (2.6-3.8L/M)
UF Membrane Water Filter specifications
| Membrane Type | Hollow fiber |
| Membrane material | PVDF(Polyvinylidene Fluoride) |
| Membrane Pore Size | 0.02 μm |
| Surface Properties | Non-ionic and hydrophilic |
| Potting Material | Epoxy Resin/ Polyurethane |
| Membrane housing material | UPVC |
| Permeate outlet (A) | DN50 |
| Concentrate outlet (B) | DN40 |
| Feed & Air Inlet (C) | DN50 |
| Type | 8080 UF membrane (others also available) |
| Membrane Area | 55.7 m2 |
| Max. Feed Water Pressure | 3.8 bar |
| Max. TMP | 2.0 bar |
| Backwash Type | Air scour with liquid backwash |
| Max. Backwash Flow | 1.8 L/m2/H |
| Operating pH | 5-10 |
| Max operating temperature | 45℃ |
UF membrane benefits
- With a clever and compact design, it occupies minimal space while delivering high levels of automation.
- Provides clean and clear filtered water without issues of odor or turbidity.
- Incorporates an automatic control system, including backwashing, eliminating the need for constant oversight, reducing labor costs, and effectively addressing the complexities and failures associated with traditional equipment operation or inadequate protection.
- Demonstrates stable performance, extended lifespan, and low operational costs.
- Environmentally friendly with no secondary pollution.
- Achieves a water reuse rate of over 90%, minimizing natural wastage.
