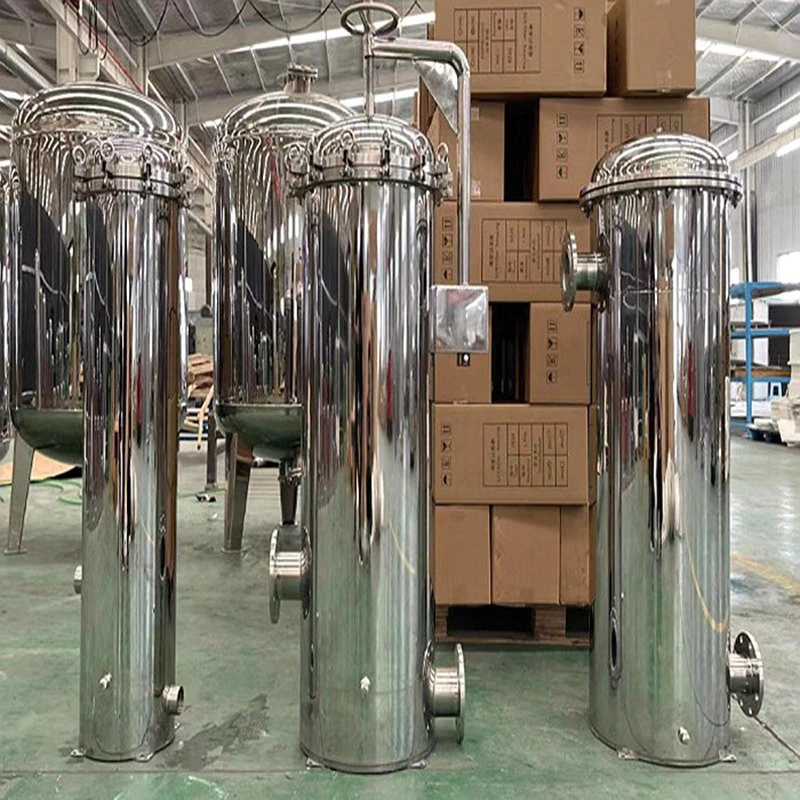

High Flow Filter Housing
Cover opening & closure type: Swing bolt hinged
Max working pressure: 10 bar (150PSI)
Filter elements adaptor：222 o-ring/fin, Double open end-DOE
Filter type: Cartridge filters
Quantity of filter: 3, 5, 7, 10, etc.
High Flow Filter Housing – 316L Stainless Steel Multi-Cartridge Design
This filter housing supports 10" to 40" filter cartridge elements and withstands up to 150 PSIG (10.3 bar).
Its swing-bolt closure enables tool-free cartridge replacement in under 5 minutes, while the side-in/side-out flow path ensures compact installation in confined spaces.
Ideal for:
- Biopharmaceutical sterile filtration
- Chemical processing & solvent filtration
- Desalination & marine filtration systems
- Water treatment and power generation plants
Technical Specifications
| Parameter | Details |
|---|---|
| Material | 316L Stainless Steel (ASTM A276) |
| Surface Finish | Electropolished (Ra ≤0.8μm) |
| Filter cartridge element size | 10" / 20" / 30" / 40" |
| Configuration | Single / Triple / Five Cartridge |
| Max Operating Pressure | 150 PSIG (10.3 bar) |
| Inlet/Outlet | 1.5" Tri-Clamp (sanitary) |
| Drain Port | 1" NPT |
| Filter cartridge element quantity | 3, 5, 7, 9, 10 |
| Standards | FDA 21 CFR 177.2600, GMP compliant |
Key Features & Benefits
316L Stainless Steel Hygienic Construction
Electropolished interior surface minimizes contamination and meets FDA/GMP standards - ideal for aseptic processing in pharmaceuticals and biotech industries.
150 PSIG High-Pressure Design
Rugged construction with swing-bolt closure guarantees leak-free sealing for high-pressure and corrosive applications.
Flexible Cartridge Compatibility
Supports multiple cartridge types and sizes, adaptable for lab-scale or industrial production.
Steam Sterilization & CIP/SIP Ready
Withstands repeated sterilization cycles at 134°C without deformation or corrosion - validated for biotech and food-grade systems.
Quick Maintenance Design
Pre-drilled mounting legs and 1" drain ports allow rapid installation and 30% faster cartridge swaps compared to standard housings.
Product Comparison – Standard vs. High Flow Filter Housing
| Feature | Standard Filter Housing | High Flow Filter Housing |
|---|---|---|
| Cartridge Size | 10"-30" | 10"-40" |
| Pressure Rating | 100 PSIG | 150 PSIG |
| Material | SS304 | 316L SS (Electropolished) |
| Sterilization | Limited | Steam / Autoclave Ready |
| Maintenance | Manual | Quick-Swap (≤5 min) |
| Industries | General filtration | Critical process filtration |
👉 Conclusion: For high-throughput, sanitary or corrosive applications, the High Flow Filter Housing delivers superior reliability and efficiency.
Why Choose Us as Your Stainless Steel Filter Housing Manufacturer
- 10+ years of precision filtration equipment manufacturing
- ISO9001-certified production facilities
- OEM/ODM service for global filtration brands
- Custom surface finish (mirror, matte, or electropolished)
- Fast delivery & technical support worldwide
Trusted by pharmaceutical, chemical, and water treatment clients in over 30 countries.
Certifications
CE certification
EMS 9001
EMS certification
ISO 9001 certification
QMS certification
Test report
FAQ
Q1: What is the maximum cartridge length supported?
A: 40" (102 cm).
Q2: Is it compatible with non-sanitary filter cartridges?
A: Yes, the housing supports both sanitary (DOE) and industrial (M8) cartridge styles for flexible filtration.
Q3: What certification does the 316L stainless steel meet?
A: Material complies with ASTM A276 and FDA 21 CFR 177.2600 for food/pharmaceutical contact.
